* Patient Monitor

* Ultrasound system

* Portable medical device

* Blood chemistry analyzer

* Medical Image

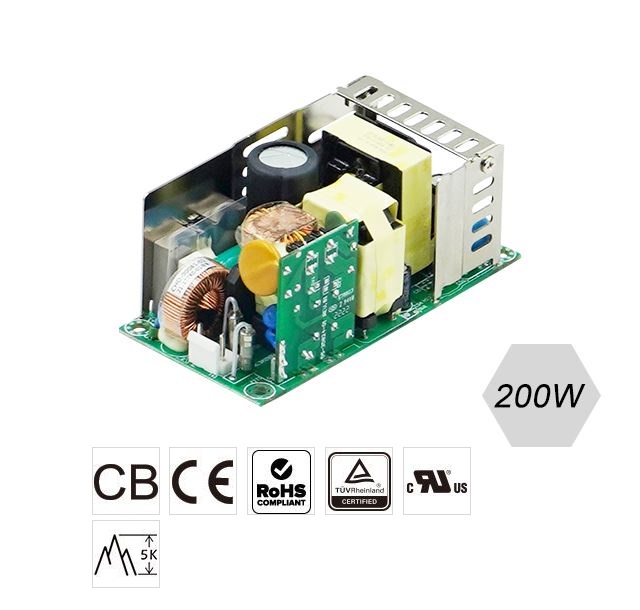

The HBU200 series is a family of open frame medical power supplies that are designed to offer 150W output power with free air convection and 200W with 10CFM forced air. The power modules are available in the voltage level of 5v, 12v, 24v, 36v, or 48v (coming with a universal input of 90-260 Vac) at efficiencies up to 92% and can operate in an operating temperature range of -10 to +70°C with a 5000M altitude operational ability.

The medical power supplies are burn-in test conducted and offer class I operation, low leakage current, overload protection (OLP), overvoltage protection (OVP), over-temperature protection (OTP), and 2 x MOPP (Means of Patient Protection) classification to ensure the safety of the patient, caregiver, and device in which the power supply is installed. The series owns comprehensive protection designs along with all-inclusive safety certifications and conforms to major international safety standards including IEC/ES/EN/CSA C22.2 60601-1. All modules are fully compliant with RoHS directive.

The HBU200 switching power supplies are designed for medical applications and are ideal for medical devices or healthcare equipment such as x-ray imaging machines, clinical/surgical monitors, patient monitoring systems, etc.

● Efficiency: 90~92%
● Line Regulation: 1% (max.)
● Load Regulation: 3% (max.)
● Hold-Up Time: 20mS (min.)
● Output Ripple and Noise: 1% (max.)

● Operating Temperature: -10 to +70°C

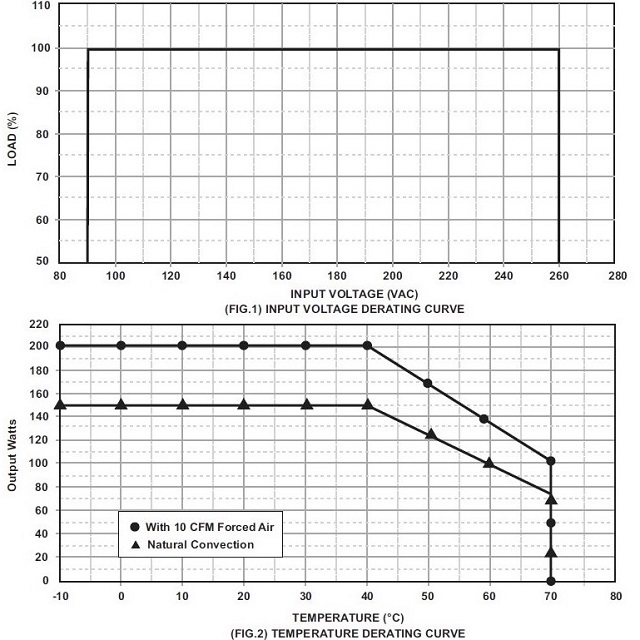

   (Derate linearly from 100% load at 40°C to 50% load at 70°C)
● Storage Temperature: -40 to +85°C
● Operating Humidity: 0~95%
● Storage Humidity: 0~95%
● MTBF: 200,000 calculated hours
