APPLICATIONS:
* Patient Monitor
* Ultrasound system
* Portable medical device
* Blood chemistry analyzer
* Medical Image

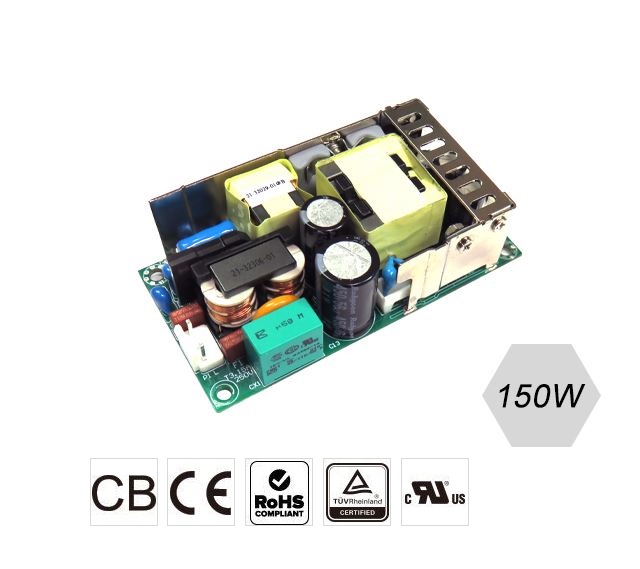

Description
The HBU100F series is a family of open frame medical power supplies that are designed to offer 150W continuous output power with a 20-cfm fan. The power modules are available in the voltage level of 12v, 24v, 36v, or 48v (coming with a universal input of 90-260 Vac) at efficiencies up to 88% and can operate in an operating temperature range of -10 to +70°C.
The medical power supplies are burn-in test conducted and offer class I operation, low leakage current, overload protection (OLP), crowbar mode overvoltage protection (OVP), over-temperature protection (OTP), and 2 x MOPP (Means of Patient Protection) classification to ensure the safety of the patient, caregiver, and device in which the power supply is installed. The series owns comprehensive protection designs along with all-inclusive safety certifications and conforms to major international safety standards including IEC/ES/EN/CSA C22.2 60601-1. All modules are fully compliant with RoHS directive.
The HBU100F switching power supplies are designed for medical applications and are ideal for medical devices or healthcare equipment such as refractometer eye test machines, ultrasound systems, blood chemistry analyzers, medical imaging
Electrical Characteristics
● Efficiency: 86~88%
● Line Regulation: 1% (max.)
● Load Regulation: 3% (max.)
● Hold-Up Time: 8 mS (min.)
● Output Ripple and Noise: 1% (max.)
Environmental
● Operating Temperature: -10 to +70°C

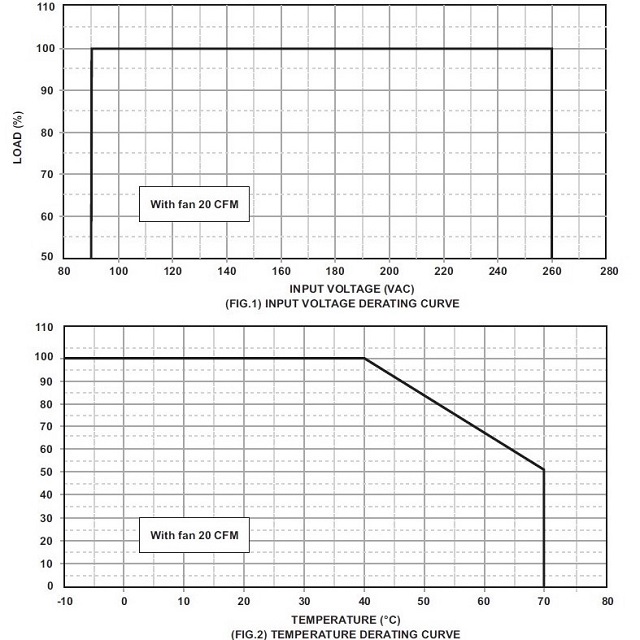

(Derate linearly from 100% load at 40°C to 50% load at 70°C)
● Storage Temperature: -40 to +85°C
● Operating Humidity: 0~95%
● Storage Humidity: 0~95%
● MTBF: 200,000 calculated hours

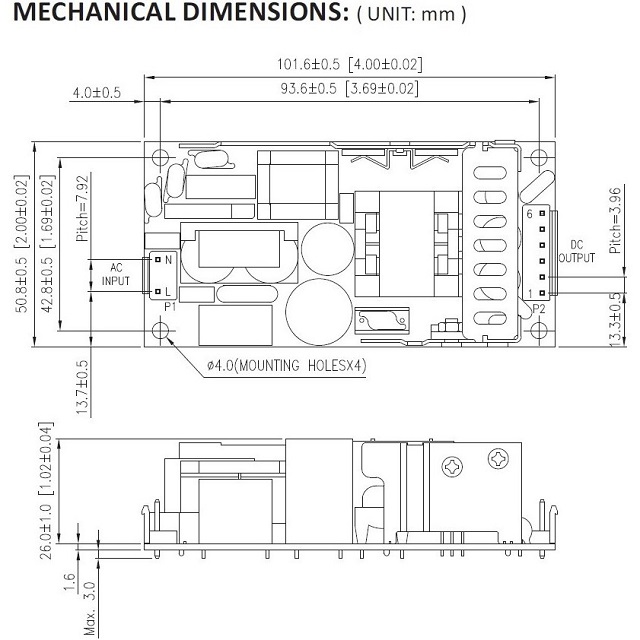

Model Number
| Model No. | Output Voltage(VDC) | Output Current(A) | Max. Output Power(W) |
| HBU100-105F | 11.0~13.0 | 13.63~11.53 | 150 |
| HBU100-106F | 13.0~16.0 | 11.53~9.37 | 150 |
| HBU100-107F | 16.0~21.0 | 9.37~7.14 | 150 |
| HBU100-108F | 21.0~27.0 | 7.14~5.55 | 150 |
| HBU100-109F | 27.0~33.0 | 5.55~4.54 | 150 |
| HBU100-110F | 33.0~40.0 | 4.54~3.75 | 150 |
| HBU100-111F | 40.0~50.0 | 3.75~3.00 | 150 |
