APPLICATIONS:
* Patient Monitor
* Ultrasound system
* Portable medical device
* Blood chemistry analyzer
* Medical Image
Description

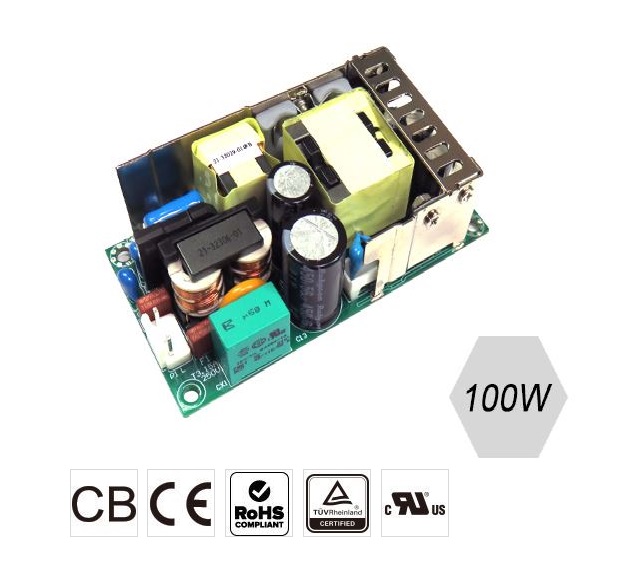

The HBU100 series is a family of open frame medical power supplies that are designed to offer 100W continuous output power with a single output of either 12v, 24v, 36v, or 48v (coming with a universal input of 90-260 Vac) at efficiencies up to 89% and can operate in an operating temperature range of -10 to +70°C.
The medical power supplies are burn-in test conducted and offer class I operation, low leakage current, overload protection (OLP), crowbar mode overvoltage protection (OVP), and 2 x MOPP (Means of Patient Protection) classification to ensure the safety of the patient, caregiver, and device in which the power supply is installed. The series owns comprehensive protection designs along with all-inclusive safety certifications and conforms to major international safety standards including IEC/ES/EN/CSA C22.2 60601-1. All modules are fully compliant with RoHS directive.
The HBU100 switching power supplies are designed for medical applications and are ideal for medical devices or healthcare equipment such as refractometer eye test machines, ultrasound systems, blood chemistry analyzers, medical imaging equipment, patient monitors, etc.
Electrical Characteristics
● Efficiency: 86~89%
● Line Regulation: 1% (max.)
● Load Regulation: 5% (max.)
● Hold-Up Time: 16mS (min.)
● Output Ripple and Noise: 1% (max.)
Environmental

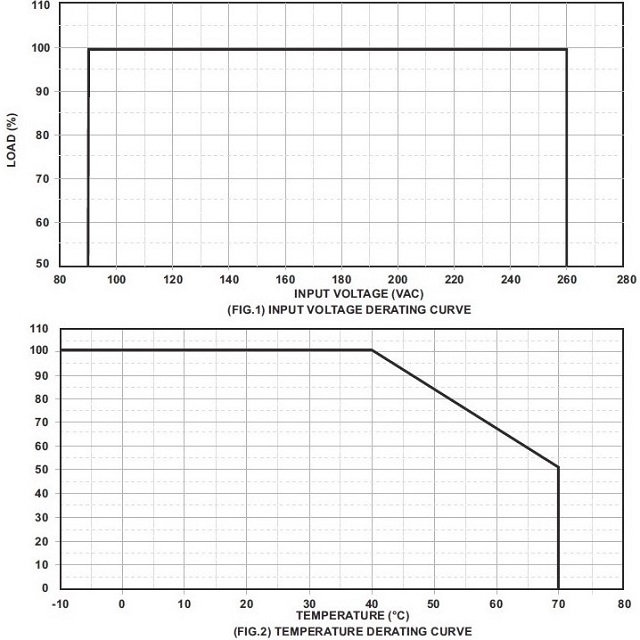

● Operating Temperature: -10 to +70°C
(Derate linearly from 100% load at 40°C to 50% load at 70°C)
● Storage Temperature: -40 to +85°C
● Operating Humidity: 0~95%
● Storage Humidity: 0~95%
● MTBF: 100,000 calculated hours

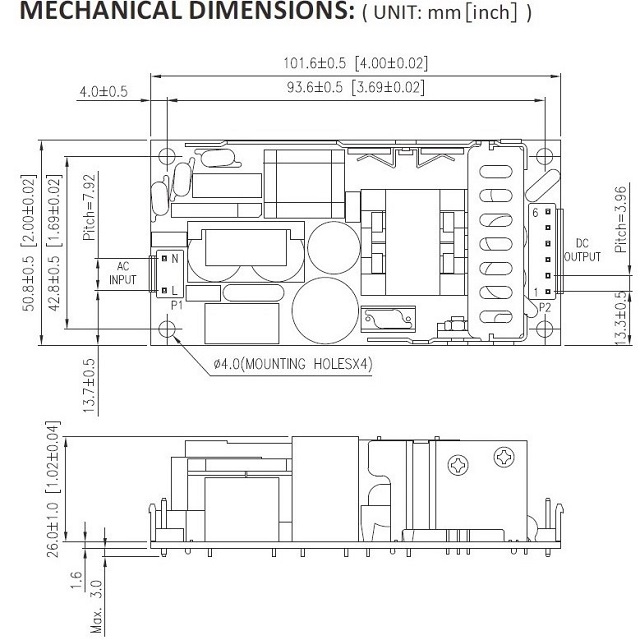

Model Number
| Model No. | Output Voltage(VDC) | Output Current(A) | Max. Output Power(W) |
| HBU100-105 | 11.0~13.0 | 8.33~7.69 | 100 |
| HBU100-106 | 13.0~16.0 | 7.69~6.25 | 100 |
| HBU100-107 | 16.0~21.0 | 6.25~4.77 | 100 |
| HBU100-108 | 21.0~27.0 | 4.77~3.70 | 100 |
| HBU100-109 | 27.0~33.0 | 3.70~3.03 | 100 |
| HBU100-110 | 33.0~40.0 | 3.03~2.50 | 100 |
| HBU100-111 | 40.0~50.0 | 2.50~2.00 | 100 |
