APPLICATIONS:
* Industrial PC
* Electrical Test & Measurement Instruments
* Communication equipment
* AV equipment
Description

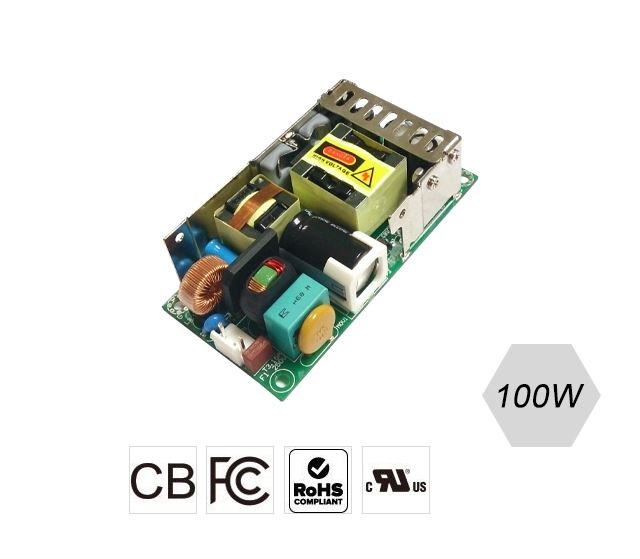

The SBU99 series is a family of open frame ITE power supplies that are designed to offer 100W continuous output power with a single output of either 12v, 24v, 36v, 48v, or 55v (coming with a universal input of 90-260 Vac) at efficiencies up to 89%. The power modules can operate in an operating temperature range of 0 to +70°C, and an active power factor correction (PFC) is included to improve the power quality.
The ITE power supplies are burn-in test conducted and offer class I operation, overload protection (OLP), and crowbar mode overvoltage protection (OVP) to ensure the safety of the user and device in which the power supply is installed. The series owns comprehensive protection designs along with all-inclusive safety certifications and conforms to major international safety standards including UL/IEC/EN/CSA C22.2 60950-1. All modules are fully compliant with RoHS directive.
The SBU99 switching power supplies are designed for ITE applications and are ideal for LED digital signage, data switches, communication equipment, etc.
Electrical Characteristics
● Efficiency: 87~89%
● Line Regulation: 1% (max.)
● Load Regulation: 3% (max.)
● Hold-Up Time: 16mS (min.)
● Output Ripple and Noise: 1% (max.)
Environmental
● Operating Temperature: 0 to +70°C
(Derate linearly from 100% load at 50°C to 50% load at 70°C)
● Storage Temperature: -40 to +85°C
● Operating Humidity: 0~95%
● Storage Humidity: 0~95%
● MTBF: 100,000 calculated hours
Model Number
| Model No. | Output Voltage(VDC) | Output Current(A) | Max. Output Power(W) |
| SBU99-105 | 11.0~13.0 | 8.33~7.69 | 100 |
| SBU99-106 | 13.0~16.0 | 7.69~6.25 | 100 |
| SBU99-107 | 16.0~21.0 | 6.25~4.76 | 100 |
| SBU99-108 | 21.0~27.0 | 4.76~3.70 | 100 |
| SBU99-109 | 27.0~33.0 | 3.70~3.03 | 100 |
| SBU99-110 | 33.0~40.0 | 3.03~2.50 | 100 |
| SBU99-111 | 40.0~48.0 | 2.50~2.00 | 100 |
| SBU99-112 | 50.0~55.0 | 2.00~1.81 | 100 |
